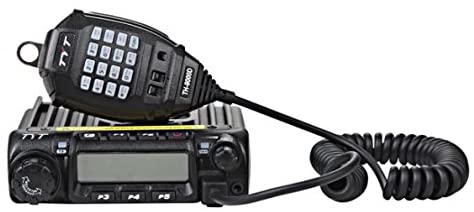

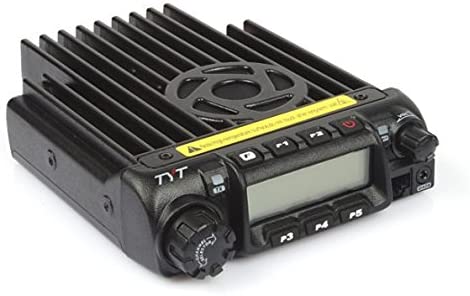

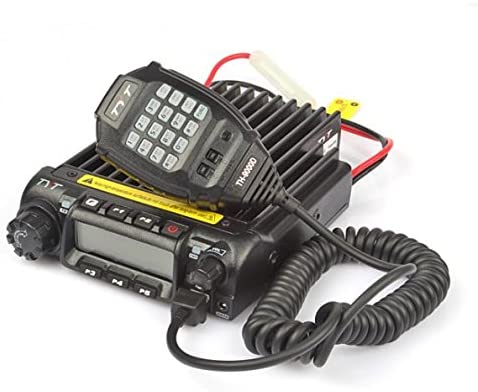

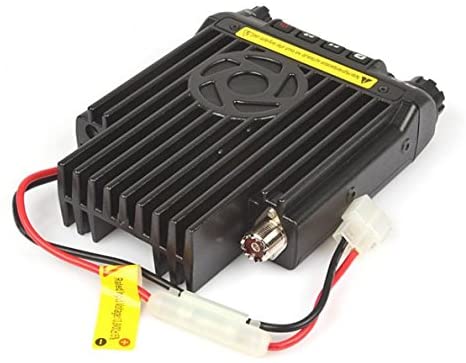

Tyt 350 mhz to 390 mhz Th-9000d Uhf Mono Band Mobile Transceiver 65 Watt BASE RADIO

• Frequency Range: UHFF; RX: 350 Mhz  - 390 Mhz

• Heavy Duty Two Way VHF Mobile Transceiver 65 Watt with CTCSS/DCS (PL & DPL).

• Full Keypad Microphone, 200 Alphanumeric Channels. Cool-Blue Display Backlight. Includes Mounting Bracket & Fused Power Cable.

• Features 3 Selectable Power Levels, DTMF, Keypad Lock, Scan Modes & More!

• Requires Optional Suitable  UHF Antenna, & Hookup to 12-14Vdc ( 12-14A)

Product description

Functions:

Frequency Range:  UHF 350 - 390 Mhz

-

- 8 Group's of Scrambler

- 1750Hz Tone CTCSS/DCS setting & scanning

- 0-9 SQL grade setting

- Frequency/Channel scanning

- High/Mid/Low power selectable

- Voice commander

- Repeater offset shift

- Keypad lock function

- Contact book

- Battery voltage display

- DTMF/2 tone/5 tone

- ANI ID

- Remote kill/ stun/ activate/ revive

- Emergency alarm

- Wide/Narrow band setting

- TX inhibit

- Busy Channel Lock-Out

- Channel name editing

- Reverse frequency

- Talk around

- Scrambler(Optional)

- Voice prompt

- Time-out Timer

- Auto Power off

- VFO step setting:5/6.25/10/12.5/20/25/50kHz



Specification:

General:

Frequenvy Range:    UHF 350-  390 Mhz

Channel Capacity: 200

Channel Spacing: 5/6.25/8.33/10/12.5/15/20/25/30/50KHz

Freruency Stability: 2.5ppm

Operating Temperature: -20℃ ~ + 60℃

Operating Voltage: 13.8V DC ± 15%

Dimension(HxWxD): 145mm x190mm x47mm

Weight(with bracket): 1200g

Receiver:

Reference Sensitivity: 0.2μV @ 12dB SINAD

Operating Bandwidth: 60dB@12.5KHz /70dB@25KHz

Adjacent Channel Selectivity: 60dB@12.5KHz 70dB@25KHz

Inter-modulation Rejection: ≥60dB/ ≥65dB

Spurious Response Rejection: ≥70dB

Rated Audio Response: +1-+3dB

Rated Audio Distortion: <5%

FM Hum&Noise: ≥40dB@25KHz /≥45KHz @12.5KHz

Transmitter:

RF Power:   45  WATT / 55 WATT

Frequency Modulation: 11kΦF3E / 16kΦF3E

Modulation Distortion :< 5% FM Noise: ≥36dB@25KHz /≥40KHz @12.5KHz

Adjacent Channel Power: ≥60dB@12.5KHz /≥70KHz @25KHz

Audio Response: +1-+3dB

Audio Distortion: <5%

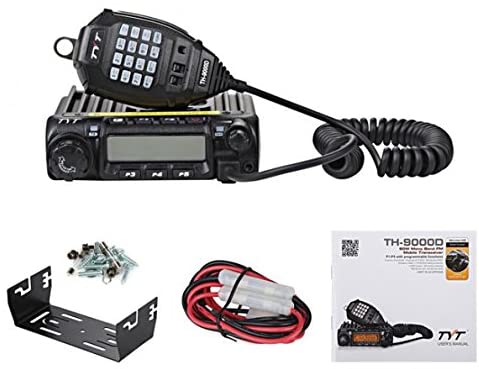

Package Content:

1* TYT TH-9000D Mobile Transceiver (350 - 390MHz)

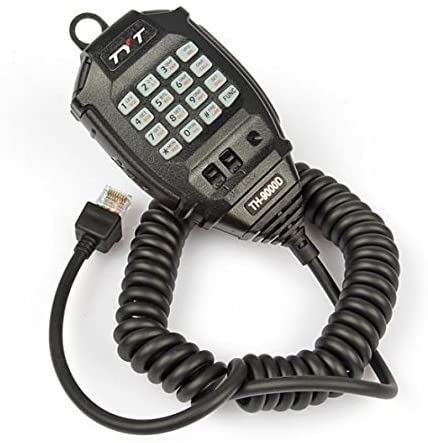

1* Handheld Microphone

1* Power Cable

1* Screws and Accessories

1* User's Manual

1* Fixed Bracket

Product information

Technical Details

Item Weight	‎3.4 pounds
Product Dimensions	‎13 x 4.5 x 9.6 inches
Item model number	‎TYT-TH-9000D
Batteries	‎1 Lithium ion batteries required. (included)
Is Discontinued By Manufacturer	‎No
Display Type	‎LCD
