Evolving from the RADWIN 2000 Alpha and SU redefines wireless connectivity by seamlessly integrating PtP and SU capabilities into a singular, high-performance solution. Designed for today’s networks, it simplifies setup and allows for easy switching between roles. Using a uniform part number and providing the option to scale from 50Mbps to 500Mbps via a software upgrade, the Alpha 2000 seamlessly grows according to your network needs.
Leveraging RADWIN's distinct, field-tested air-interface, the Alpha ensures reliable performance in unlicensed spectrums at a market-competitive price, making it the ideal choice for high-speed wireless access and durable backhaul for applications like video surveillance.
Alpha Highlights
»
50Mbps or 500Mbps aggregated PtP or SU radio unit
»
Integrated or connectorized
»
4.9-6.0 GHz
»
Up to 120 km / 75 miles (TYPICAL 40-82 KMS)
»
Built-in GPS1
»
Dying gasp1
»
AES 128/ 2562
»
Dynamic channel bandwidth
»
Highly durable - IP 67
Applications
»
Wireless enterprise access
»
Video surveillance backhaul
»
Leased line replacements
»
Building to building connectivity
RADWIN Alpha 2000 Benefits:
»
High capacity guaranteed for short packets (350K PPS).
»
Built-in GPS supports multiple radio co-location, reducing external equipment costs and eliminating a single point of failure for TDD synchronization.
»
The dying gasp feature sends alerts on local power failures, minimizing unnecessary maintenance.
»
Maintains reliable links in congested spectrums and challenging conditions.
»
Offers unmatched performance
with the lowest total cost of ownership (TCO)
»
Adheres to various location-based regulations via GPS.
Point-to-Point & Point-to-MultiPoint Subscriber Unit Series 500 Mbps Carrier Class Solution
RADWIN 2000 Alpha
Note 1: Applicable for 4.9-6.0 GHz only
Note 2: AES 256 applicable only for PtP or PtMP with 5000L
RADWIN 2000 Alpha Connectorized
RADWIN 2000 Alpha

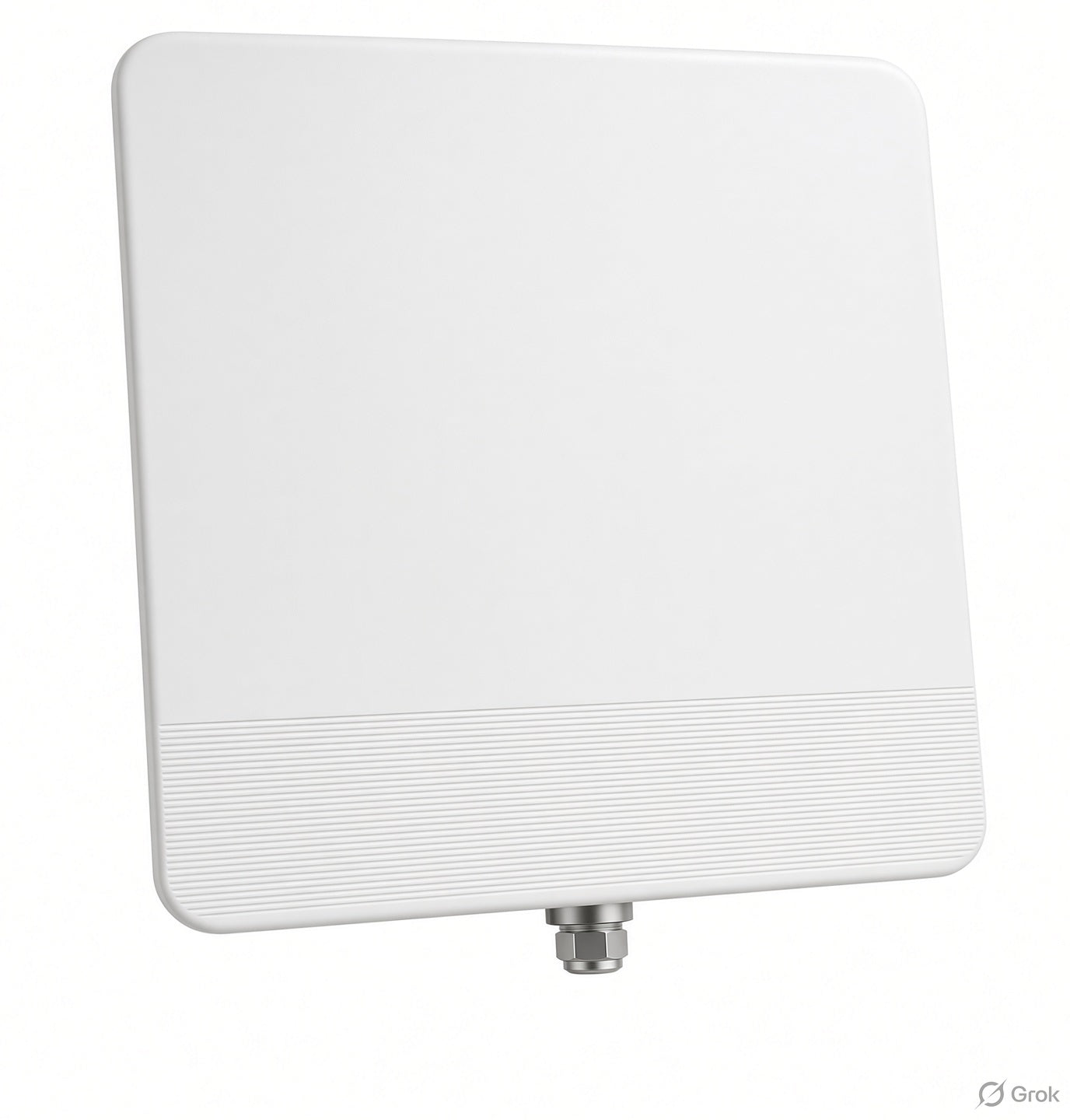

Integrated
Product Specifications
EU / Int., FCC
Architecture
Outdoor connectorized or outdoor with integrated antenna
PoE to ODU Interface
Outdoor CAT-5e; Maximum cable length: 100m for 10/100BaseT and 75m for 1000BaseT
Radio
Capacity
50Mbps net aggregate throughput. Upgradeable by license key up to 5000Mbps.
Range
120 Km for PtP. 40 Km for PtMP SU.
Frequency Band
4.9 – 6.0GHz
Channel Bandwidth
Configurable: 10, 20, 40, 80 MHz (for the default band); Dynamic Channel BW selection (20/40/80 MHz)
Modulation
MIMO-OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)
Adaptive Modulation & Coding
Supported
Automatic Channel Selection
Supported upon power up
Regulation
FCC, ETSI, Canada, MII, ACMA
Encryption
PtP mode: AES 256
SU mode: AES 128 (AES 256 by license, if BS supports AES 256)
Uplink / Downlink Allocation
Configurable: Symmetric or Asymmetric
QoS
Packet classification to 4 priority queues according to 802.1P or Diffserv
VLAN Support
802.1Q, QinQ, 4094 VLANs
TDD Intra/Inter Site Synchronization
Supported via built-in GPS receiver
ODU Management
IPv4/IPv6 dual stack; DHCP client for SU (IPv4 only); SNMPv1, SNMPv3; HTTP/HTTPS using web browser;
SU mode supported capabilities
Non PPPoE filtering, DHCP Filter, IGMP snooping, Nomadic, DHCP Option 82
Dying gasp
**Supported (PoE voltage must be >= 55v)
Mechanical
ODU Dimensions
19.5(w) x 12.5(h) x 4.0(d) cm
ODU Weight
0.5 kg / 1.10 lbs.
Power
Power Consumption
<13W
Environmental
Operating Temperatures
-35°C to 60°C / -31°F to 140°F
Humidity
100% condensing, IP67 (total protected against dust and immersion in water up to 1m)
CertificatesSafetyEU / Int., FCCEMCFCC, ETSI, CANADA, AS/NZS
