NPC DVI Over Fiber Optic Media Converter,1080P Fiber Up to 20Km with Audio

Regular price
Rs. 12,500.00
Sale price
Rs. 12,500.00
Regular price
Rs. 18,000.00
Sold out
Unit price
per
Shipping calculated at checkout.



For B2B  orders please mail   npcwireless@gmail.com

Call 9899379231 / 9811860620

CAN BE CUSTOMIZED TO 120 Kms

About this item

  • Extend your DVI signals over a single fiber optic to far end, Long transmission distance up to 20Km(12.4miles) over a singlemode fiber ,and up to 500meters over a multimode fiber. With a stereo 3.5mm audio. Optical interface: SC.
  • Full HD real-time high-quality DVI signal transmission, no delay.
  • Support video resolution up to 1920*1080P@60Hz. High compatibility, can auto-match source and display device
  • LEDs for power supply and optical fiber link, data status indication can monitor the operating status of the system.
  • Simple to Install, No need drive, Plug and Play.



Description:

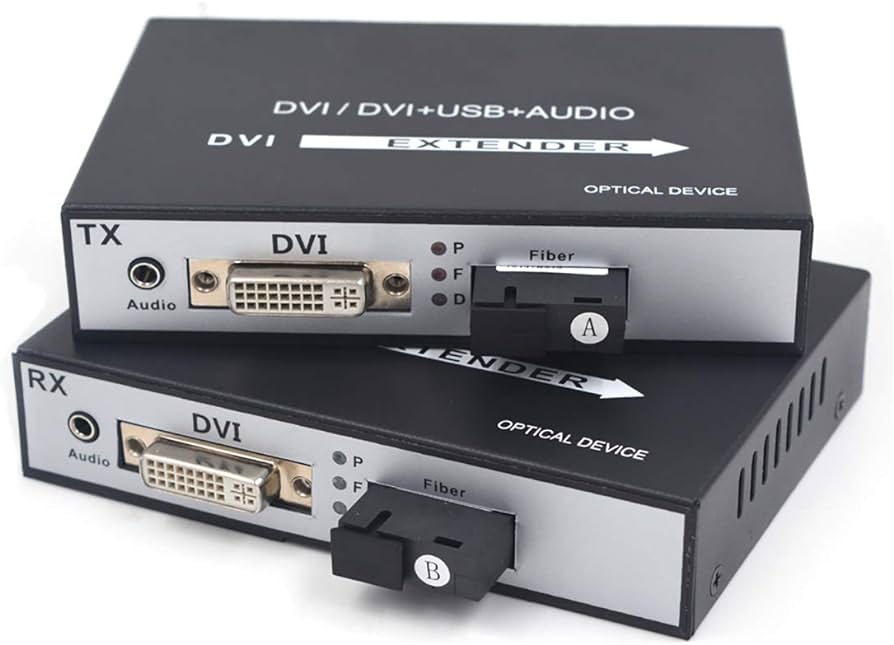

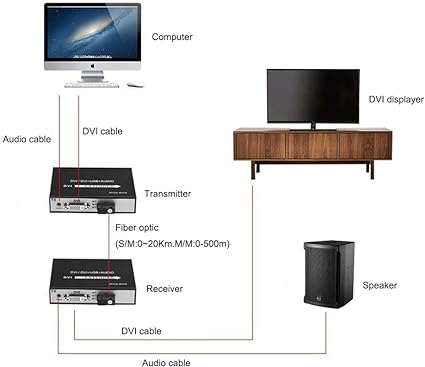

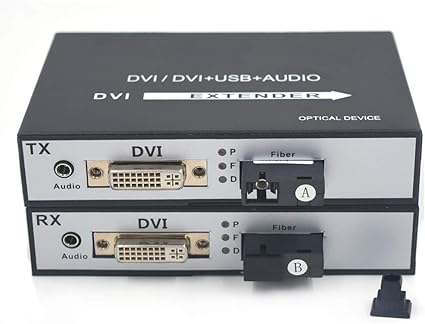

This product is composed of a transmitter and a receiver, which can extend DVI signal of the host computer or video recorder to the remote end through a single optical fiber, and the user can get the image and sound of the host computer in real time at the remote end and use the computer . At the same time at the near end of the host computer, the user can also use the computer at the near end.
The products can be used in monitoring, traffic police traffic management, energy and power supply industry, government departments, medical systems, commercial exhibitions, multimedia function halls, public utilities and other fields.

Specification:
Support video resolution up to 1920*1080P@60Hz.
Connector: DVI Female .
Optical interface: Simplex SC.
Fiber type: universal single-mode and multimode.
Wavelength: Single-mode 1310nm/1550nm.
Transmission distance: Single mode fiber: 0-20KM, Multimode fiber 0-500meters.
Power supply: AC 100-240V, DC 5V/2A.
Dimension: 125x90x27mm (LxWxH).

Environmental requirements:
Environment temperature: -45 ℃~+85 ℃.
Storage temperature: -50 ℃~+95 ℃.
Relative humidity: 0~95% (no condensation)
Rated supply voltage: AC100-240V,DC5V2A.
Power consumption: 4.0w.

Package contents:
1x DVI Transmitter.
1x DVI Receiver.
2 x power supply adapter ( US standard plug).
1 x User manual

1 YR WARANTY
