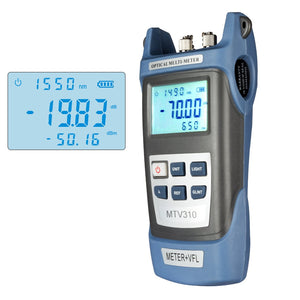

NPC All-in-One Fiber Optical Power Meter -50 dbm~+6 dBm & 10mW Visual Fault Locator

Regular price
Rs. 4,700.00
Sale price
Rs. 4,700.00
Regular price
Rs. 5,100.00
Sold out
Unit price
per
Shipping calculated at checkout.



Features
◇ Self Calibration
◇ Set the Auto Off
◇ Wavelength Memory function after turn off the tester
◇ High Accuracy, high ,High sensitivity, high linearity
◇ Stable VFL Output
◇ USB Charge port
◇ FC,SC Connector
◇ 18650Li-ion Battery
◇ Lower power consumption design, long standby time
◇ Rubber Out shell, increased the protective properties for field work

1 yr standard waranty



 Specification



Optical Power Meter Detector Type InGaAs
Optical Connector SC/FC & 2.5mm Universal
Calibrated Wavelengths 850,1300,1310,1490,1550,1625 nm
Measurement Range +6 ~ -70 dBm
Accuracy ±0.2 dB
Power Measurement Linearity ±0.1 dB
Display Resolution ±0.01 dB
Power Display Units dBm, mW, uW
Visual Fault Locator Output power 10mW
Range 12-km@SM
Connector ST/SC/FC & 2.5mm Universal
Laser safety rating Class 2
Wavelength 650nm±20nm
Output modes Continuous (CW),2 Hz pulsed
Reverse battery protection Yes
Others Power Supply 18650 Li-con battery
Auto Off 10 minutes
Working time >200hours(only OPM Work)
≥50小时(10mWVFL & OPM Work meanwhile)
Working Temperature -10~+45
Weight 250g
Dimensions 160*75*10mm
