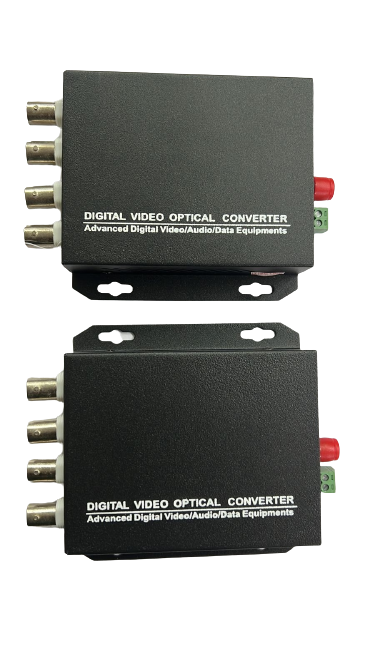

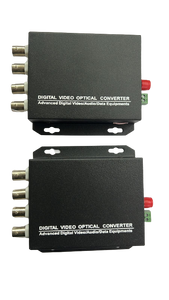

HDTVI/HDCVI/AHD Video to Optical fiber converter required to transmit HDTVI/HDCVI/AHD Camera Video to long distance over optical fiber. 4 Channel HDTVI/HDCVI/AHD to Fiber Converter can simultaneously transmit 4 channels of HDTVI/HDCVI/AHD Video over one single-mode optical fiber. LED indicators are provided for instantly monitoring system status. Compatible with HDTVI/HDCVI/AHD-H, HDTVI/HDCVI/AHD-M , HDTVI/HDCVI/AHD-L. Lossless non-compression real time transmission. Electronic and optical adjustments are never required. Compatible with 960P Lossless non-compression real time transmission.
| FEATURES |
• 10-bit digitally encoded and non-compression broadcast quality video transmission • • Support analog HD video signal • VIDEO : 960P • Video Supported: 4-ch unidirectional, Data: 1-ch reverse RS485 |
| APPLICATIONS |
• CCTV • Video Transmission • Video monitor • CATV |
SPECIFICATIONSWavelength & Fiber1310nm/1550nm Single modeNumber of Channels4 BNC 75Ω (unbalance)Rx sensitivity-25dBmOptical connectorFC UPCDistance0~20KM (OPTIONAL)Standard video input/output voltage1.0Vp-pTemperature-40ºC ~75ºCVideo Bandwidth45MHzHumidity10%~90% RHOutput level -8~3dBmSampling Bandwidth10bitData FormatReverse RS485Dimension104mm×104mm×28mmPower Consumption≤6WBER≦10-7
