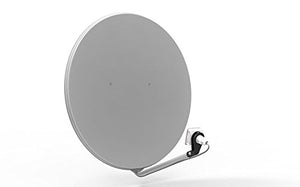

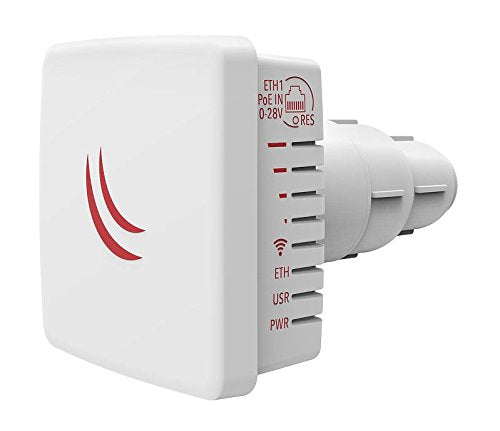

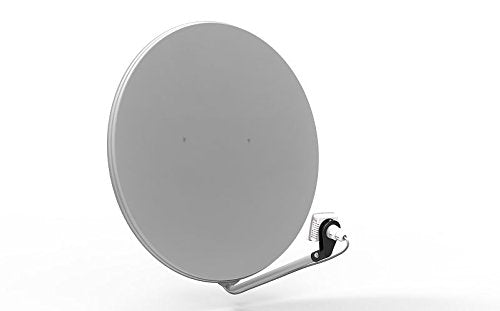

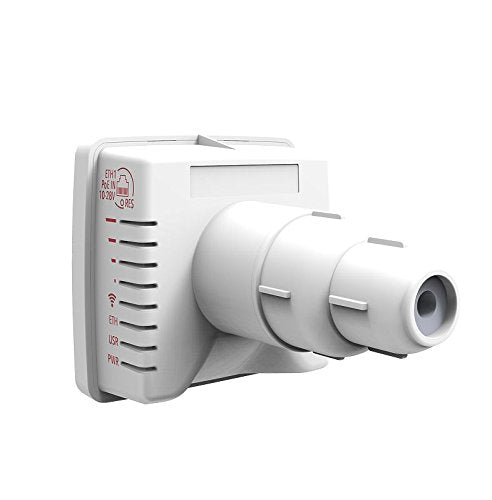

The LDF (Lite Dish Feed) is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas.
-
The dish will act as a reflector, amplifying the signal.
-
This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links.
-

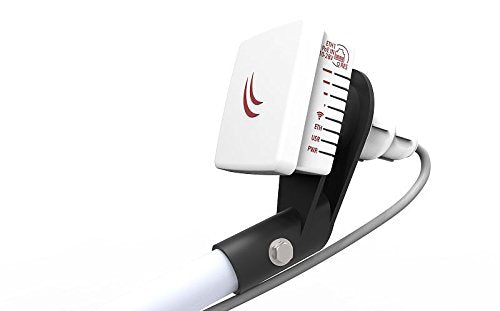

The offset mount is universal at 40mm diameter, and the LDF can easily be placed inside it.
-
Using a dish of up to 100cm in diameter, it is possible to obtain antenna amplification of up to 33dBi. The device comes preinstalled with RouterOS and is ready to use.
Product information
Technical Details
Brand |
Mikrotik |
Manufacturer |
Mikrotik |
Model |
RBLDF-5ND |
Model Year |
2017 |
Product Dimensions |
8.4 x 11.5 x 8.4 cm; 340 Grams |
Item model number |
RBLDF-5ND |
RAM Size |
64 MB |
Memory Storage Capacity |
64 MB |
Flash Memory Installed Size |
16 |
Mounting Hardware |
Others |
Colour Screen |
No |
Wattage |
6 Watts |
Batteries Included |
No |
Batteries Required |
No |
Wireless Type |
802.11n |
Material |
Others |
Includes Rechargable Battery |
No |
Remote Control Included? |
No |
Programmable Buttons |
No |
Manufacturer |
Mikrotik |
Item Weight |
340 g |
