27 Mhz licence Free CB radio base station 4watt/10 watt selectable
SHIPS same Day

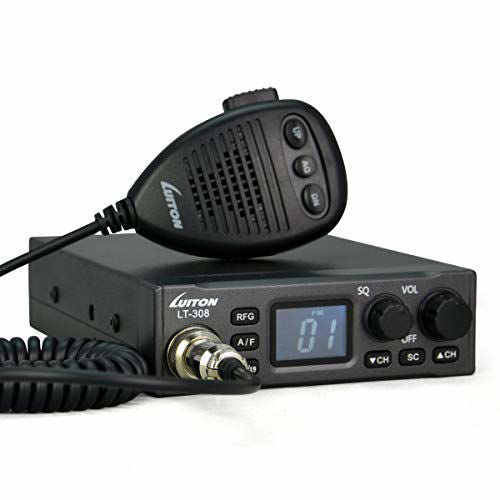

LT-308 LCD display 40 channels am/fm 27mhz cb radio
• Frequency: 25.615~30.105MHz
• 4Watts or 10Watts CB radio
• Channels: E D EU EC PL UK US NZ
• Expand Mode Freq: RU PO PC
• Emergency call channel available (CH9).
• SQ function.
• ASQ function.
Technical Specifications :
| General | |
| Modulation modes | AM/FM |
| Frequency range | 26.965-27.405MHz |
| Antenna impedance | 50 Ohms |
| Power supply | 13.2V |

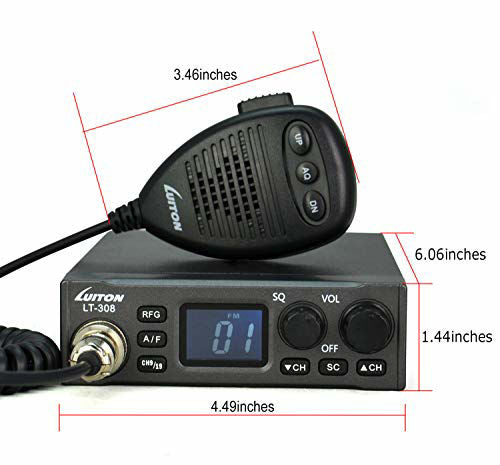

| Dimensions | 115(L)×38(A)×150(P)mm |
| Weight | 0.8kg |
| Transmission | |
| Frequency error | +/-300HZ |
| Carrier power | 4W/10W |
| Transmission interference | Inferior to 4nW(-54dBm) |
| Audio response | 300HZ to 3KHZ in AM/FM |
| Emitted power in the adj. channel | inferior to 20uW |
| Microphone sensitivity | 3mV |
| Maximum current | max 3A |
| Modulated single distortion | inferior ro 5% |
| Reception | |
| Max sensitivity at 20dB sinad | 0.8μV-113 dBm FM |
| 1.5μV-103 dBm AM | |
| Frequency response | 300HZ to 3KHZ in AM/FM |
| Adjacent channel selectivity | 60dB |
| Maximum audio power | 3W |
| Squelch sensitivity | Minimum 0.2μV -120dBm |
| Minimum 1mV -47dBm | |
| Maximum current | 0.3A nominal/1.2A maximum |
packing including:
- 1x LT-308 cb radio Base
- 1x Mobile Mounting Bracket ( missing if you are ok buy without mounting bracket , bracket is easy to make DIY
- 1x DC Power Cable
- 90 days waranty
