| requency coverage | USA version | Transmit | 144–148 MHz | |
|---|---|---|---|---|
| Receive | 136–174 MHz* | |||
| TPE Version, KOR Version | Transmit/Receive | 144–146 MHz | ||
| THA Version | Transmit/Receive | 144–147 MHz | ||
| Number of memory channels | 207 channels (including 1 call and 6 scan edges) | |||
| Type of emission | F2D, F3E (FM) | |||
| Frequency stability | ±3 ppm | |||
| Power supply requirement | 13.8 V DC ±15% | |||
| Current drain (approximate) | Tx 65 W | 11 A | ||
| Rx Max. audio/Stand-by | 1.5 A/0.4 A | |||
| Antenna impedance | 50 Ω (SO-239) | |||
| Operating temperature range | –10°C to +60°C; 14°F to +140°F | |||
| Dimensions (W × H × D; Projections not included) |
140 × 40 × 118 mm; 5.5 × 1.6 × 4.6 in |
|||
| Weight (approximate) | 1.1 kg; 2.4 lb | |||
* Guaranteed range TX/RX: 144–148 MHz.
Transmitter
| Output power (13.8 V DC) | Power | 65 W, 25 W, 10 W, 5 W | |
|---|---|---|---|
| Max. frequency deviation | ±5.0 kHz/±2.5 kHz (W/N) | ||
| Spurious emissions | Less than –60 dBc | ||
| Microphone impedance | 600 Ω (8-pin modular) | ||
Receiver
| Sensitivity (at 12 dB SINAD) | Less than 0.18 μV | ||
|---|---|---|---|
| Selectivity | Wide | More than 6 kHz (at 6 dB) Less than 14 kHz (at 60 dB) |
|
| Narrow | More than 3 kHz (at 6 dB) Less than 9 kHz (at 55 dB) |
||
| Spurious response | More than 60 dB | ||
| Audio output power | 4.5 W typ. (10% dist., 4 Ω load) | ||
| Ext. speaker connector | 2-conductor 3.5 (d) mm (1/8ʺ)/4 Ω | ||
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications
| Standard |
MIL-810 G |
|
|---|---|---|
|
Method |
Procedure |
|
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D -E and -F.
Supplied Accessories

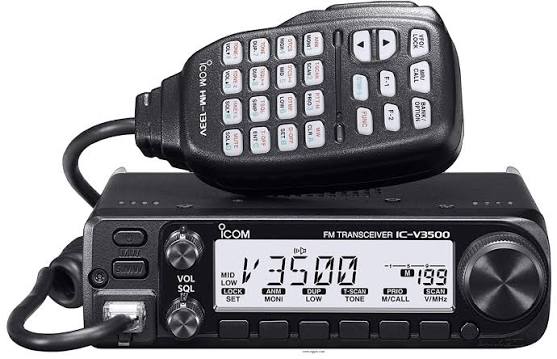

- Remote control Mic, HM-133V or Hand Mic, HM-154*
- Mounting bracket kit
- Microphone hanger*
- DC power cable
- Spare fuses
