Manufacturer's Part Number:SX1100
Product Line:Diamond Antenna SX1100 Dual Power Meters
DXE Part Number:DMN-SX1100
Meter Frequency Range:1.8-160 MHz
Meter Frequency Range 2:430-450 MHz
Meter Frequency Range 3:800-930 MHz
Meter Frequency Range 4:1240-1300 MHz
Minimum Power Range:5 W
Middle Power Range:20 W
Maximum Power Range:200 W
Meter Style: Sweep needle
Meter Illumination: Yes
Peak Power Readout: Yes
Peak Hold: No
Built-In Frequency Counter: No

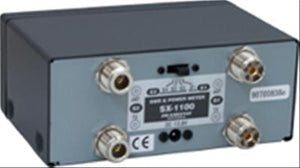

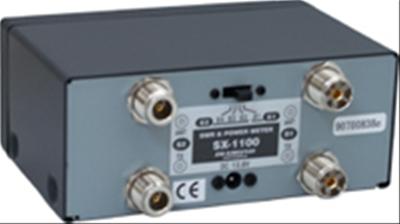

Meter RF Connector Type: Type N, female/UHF female, SO-239
DC Power Required: Yes
External Power Input Voltage:12 Vdc
Remote Sensor Included: No
SWR/Wattmeter Width:6.000 in.
SWR/Wattmeter Height:2.000 in.
SWR/Wattmeter Depth:4.000 in.
SWR/Wattmeter Weight:2.00 lbs.
Quantity: Sold individually.
Notes: Separate HF through 2 meters and UHF inputs; single switchable meter. Frequency range covered in four bands.

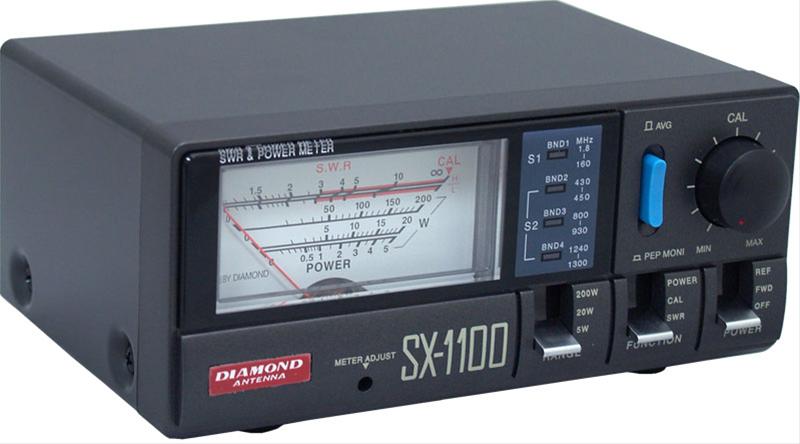

Diamond Antenna SX1100 Dual Power Meters provide a switchable selection of metering from one of two directional couplers in one box! One coupler covers 1.8 to 160 MHz, while the other covers 430 to 1300 MHz in three bands. Select the 1.8 to 160 MHz coupler for your Low-Band/VHF rig, or select the 430 to 1300 MHz coupler for your UHF rig. Since there are two separate couplers, you can leave the SX600 in-line with both rigs at the same time! The three UHF bands are selectable for 430-450, 800-930, and 1240-1300 megahertz.
Low insertion loss and accurate readings mean that your station will operate to peak efficiency. Speaking of peaks, these meters will read peak watts, as well as RMS! That's so handy when operating SSB on HF or VHF/UHF bands!
The SX1100 measures forward/reflected power and SWR using a single sweep meter. With three full-power scales of 5, 20, and 200 watts, the SX1100 provides handheld, QRP, and high power operating levels. With most of today's rigs providing 200 watts or less, the SX1100 will satisfy the vast majority of transceivers. Their compact-size, selectable power levels make these meters useful for testing both base and mobile installations.
Amateur activity on the 33 and 23-Centimeter Bands has been steadily increasing. Having an SWR/power meter to cover from 1.8 to 1300 MHz is a logical progression in test equipment.
Note: For additional product information, please look at the files under the "Documentation" tab.
When you need the features and flexibility of a dual-input, four-band HF/VHF/UHF power/SWR meter, one of these Diamond Antenna SX1100 Dual Power Meters is the choice for pushing the communications frontiers!
