UBIQUITY airMAX RocketDish, 5 GHz, 34 dBi Antenna RD-5G34

Regular price
Rs. 34,999.00
Sale price
Rs. 34,999.00
Regular price
Rs. 39,000.00
Sold out
Unit price
per
Shipping calculated at checkout.

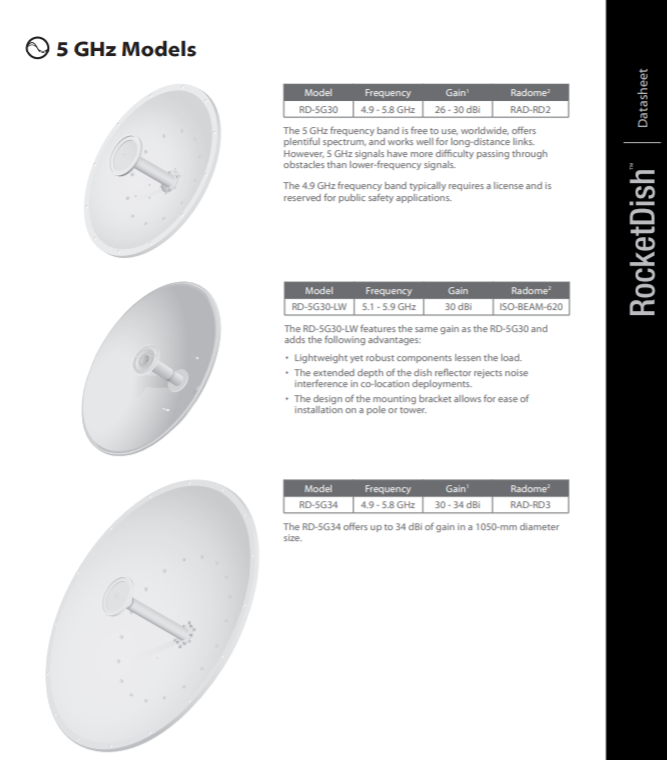

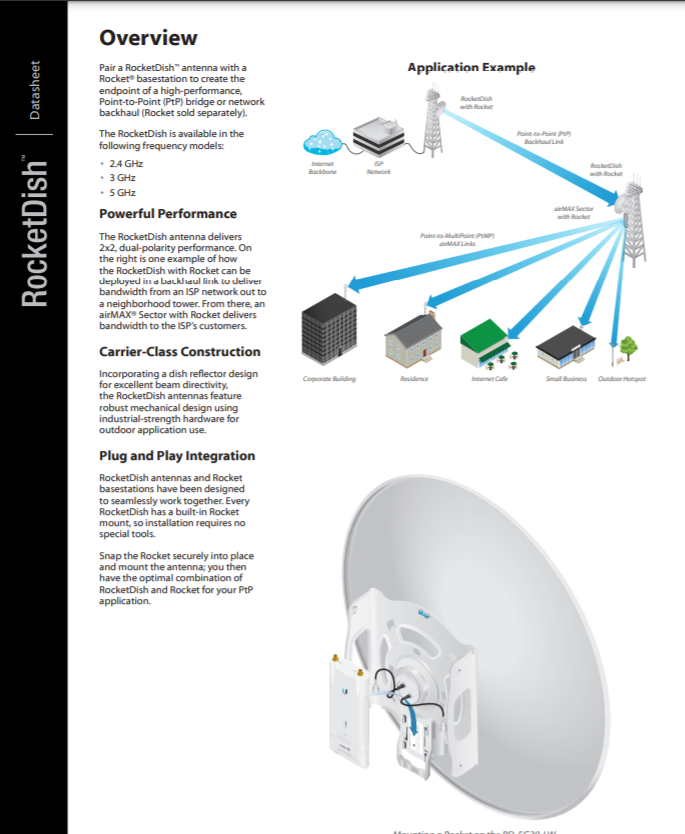

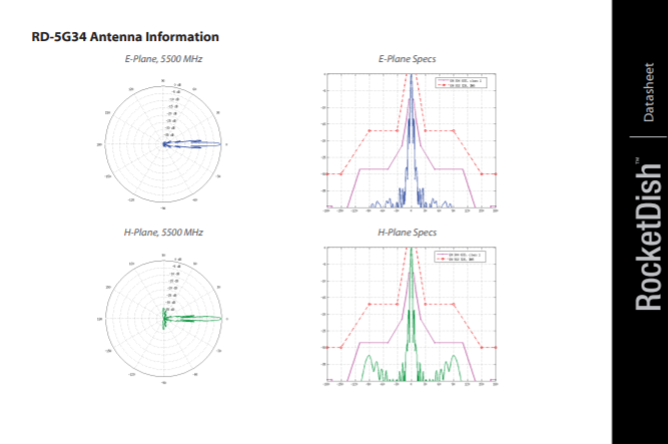

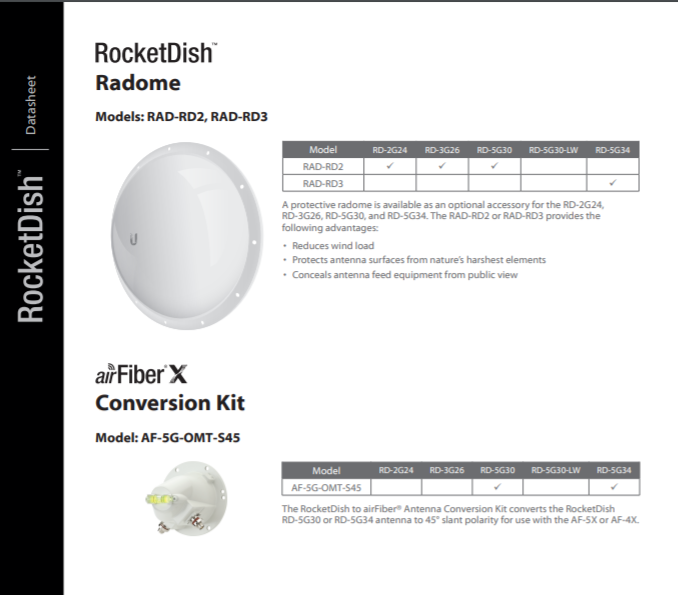

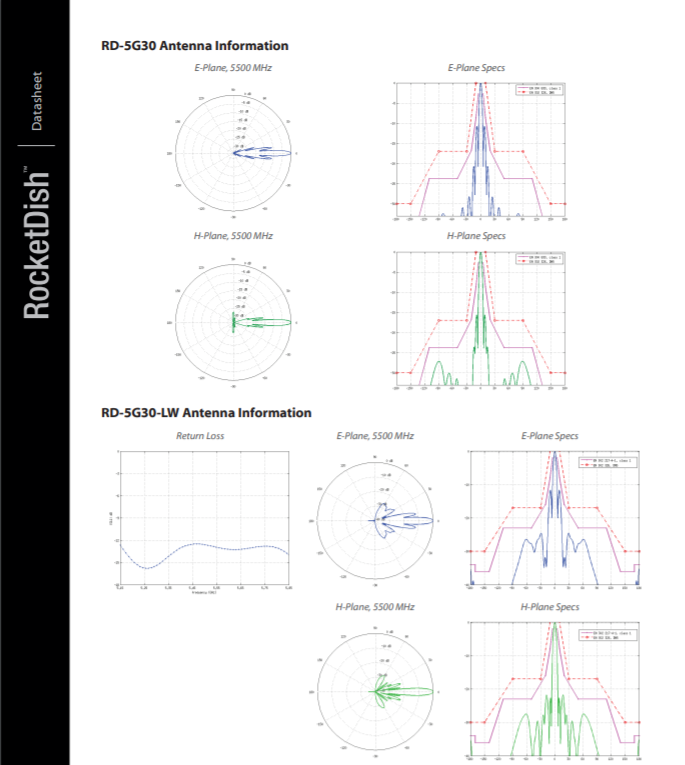

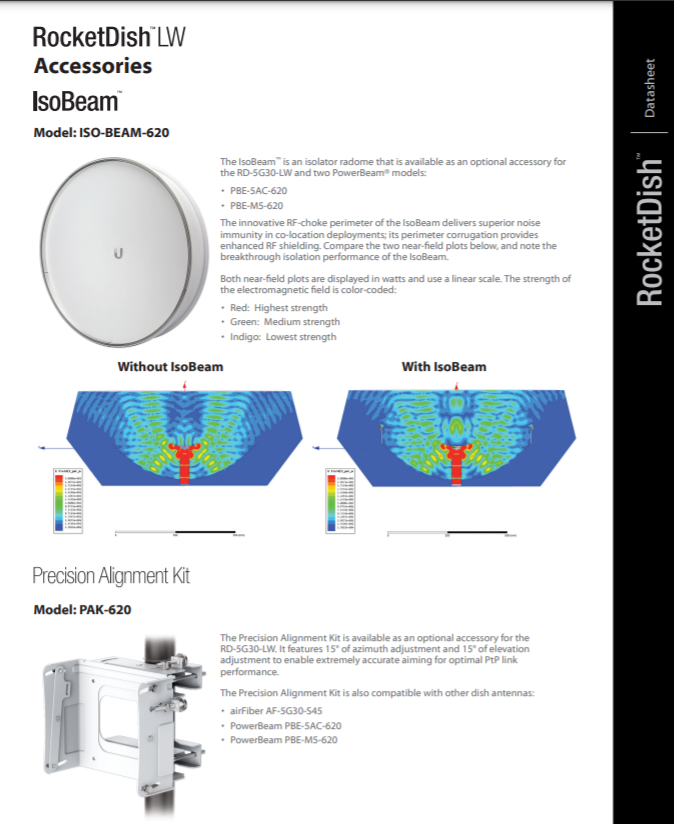

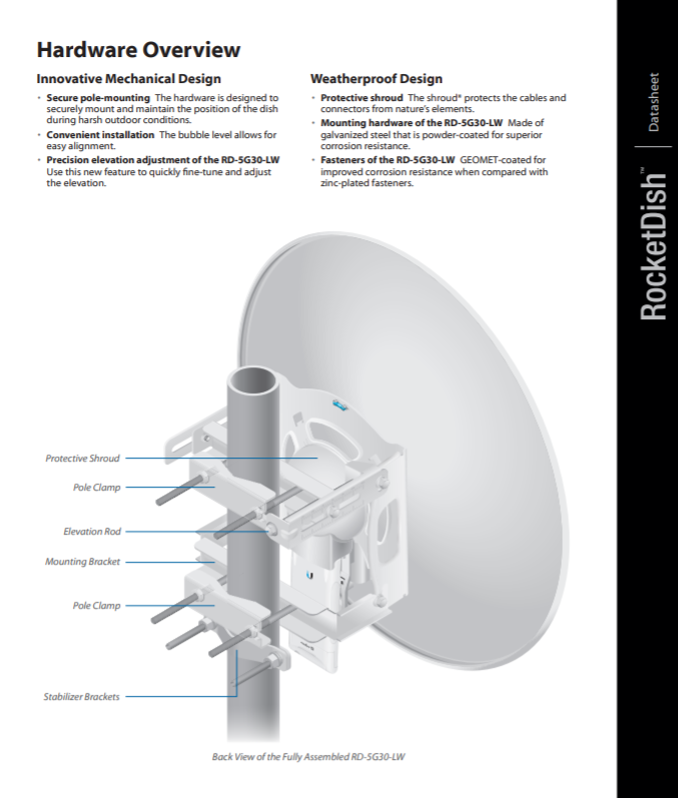

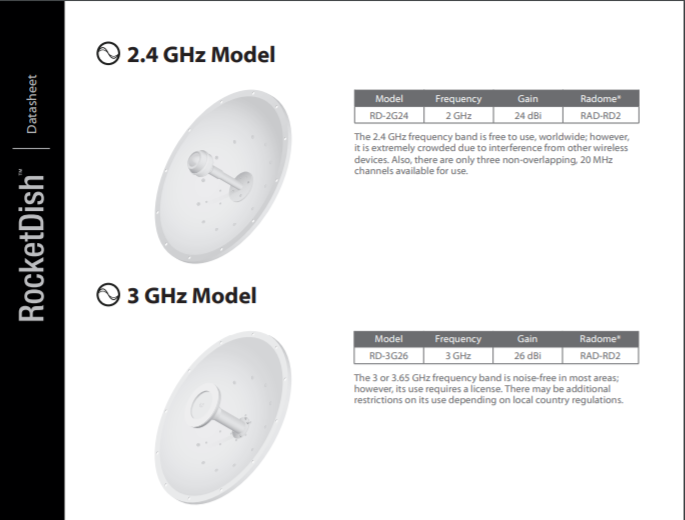

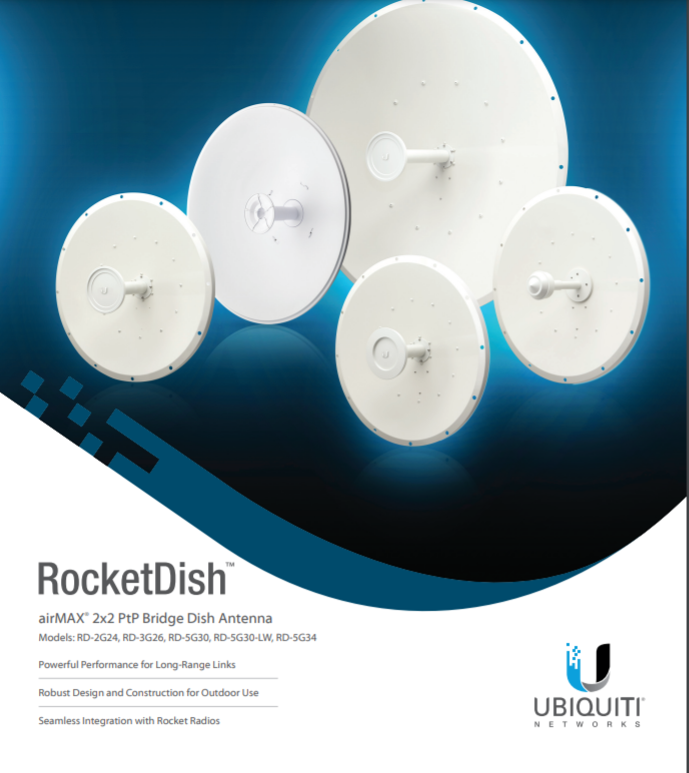

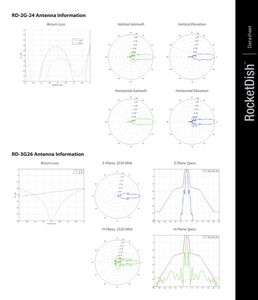

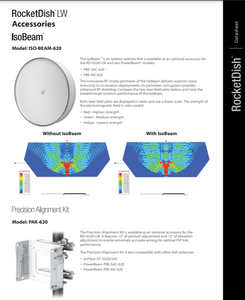

For detailed information check images:

airMAX® 2x2 PtP Bridge Dish Antenna Pair the RocketDish™ with a Rocket™M BaseStation for Point‑to‑Point (PtP) bridging and network backhauls.

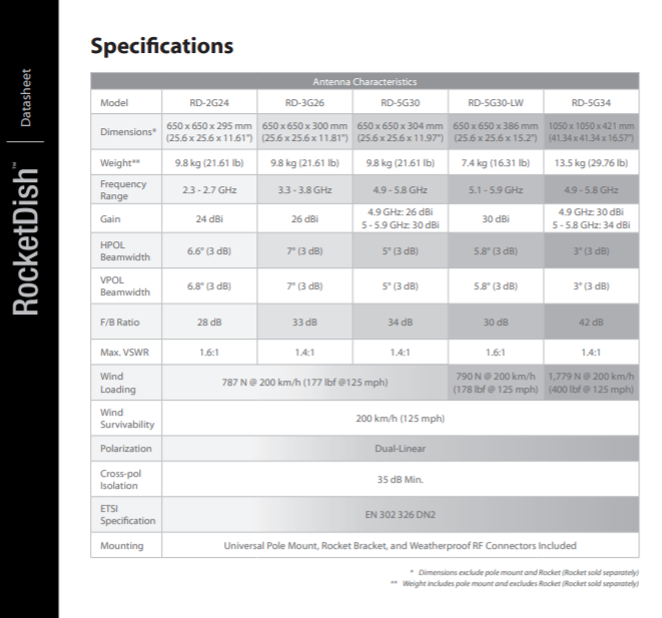

Product Description

RD-5G34
Dimensions 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57")
Weight 13.5 kg (29.76 lb)
Frequency Range 4.9 - 5.8 GHz
Gain 4.9 GHz: 30 dBi
5 - 5.8 GHz: 34 dBi
HPOL Beamwidth 3° (3 dB)
VPOL Beamwidth 3° (3 dB)
F/B Ratio 42 dB
Max. VSWR 1.4:1
Wind Loading 1,779 N @ 200 km/h (400 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Polarization Dual-Linear
Cross-pol Isolation 35 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
