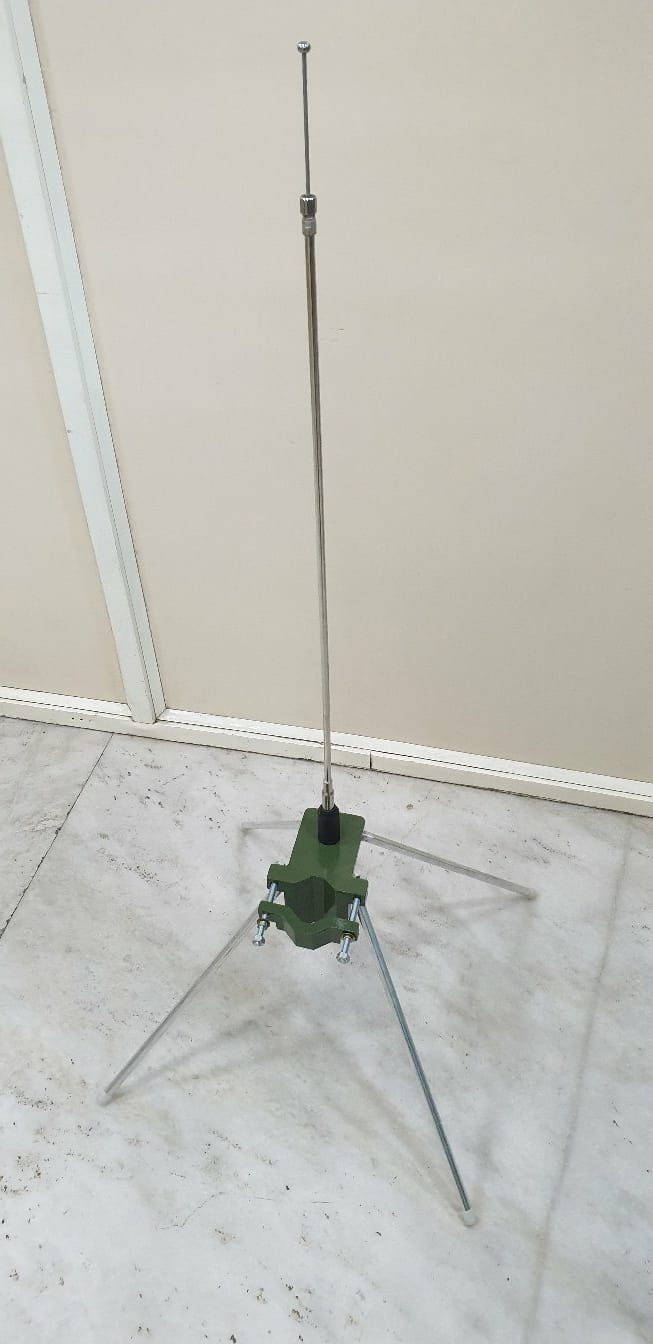

NPC VHF air band 110 to 130 Mhz 3 dbi GP antenna

NPC VHF air band 110 to 130 Mhz 3 dbi GP antenna

Regular price
Rs. 5,500.00
Sale price
Rs. 5,500.00
Regular price
Rs. 9,000.00
Sold out
Unit price
per
Shipping calculated at checkout.



ELECTRICAL  DATA
Frequency range A MHz 108 ÷ 137
Bandwidth MHz 29
Gain  max. dBi 3 dbi
Returm loss dB ≥-10
VSWR ≤1.95:1
Nominal impedance Ω 50
Polarization  V
H beamwidth      typ.   -3 dB 360°
E beamwidth      typ. -3 dB 80°
Max Power W 250  w
Connector UHF  female
Lightning protection All metal parts are D.C. grounded
MATERIALS
Anticorodal alluminium  - Brass – Teflon stainless-steel
Polyvinyl chloride  RoHS compliance IP65 Lanthane VS621
