Item description

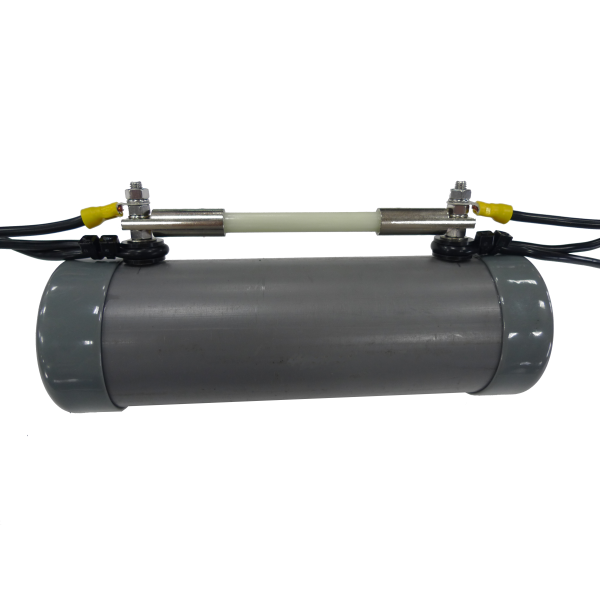

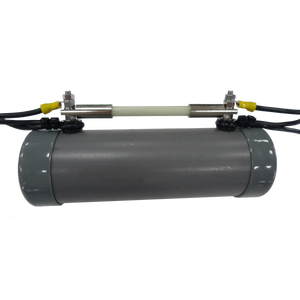

"The antenna is constructed from high quality PVC covered stranded copper wire, complete with fibreglass spreaders, matching network and balun. The balun provides for single 50 Ohm feedline operation on all bands."
Specification

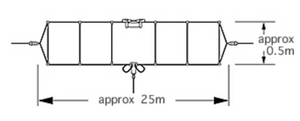

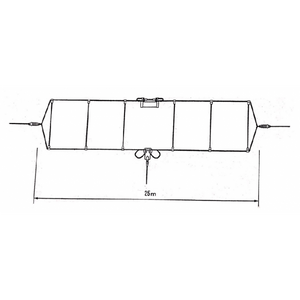

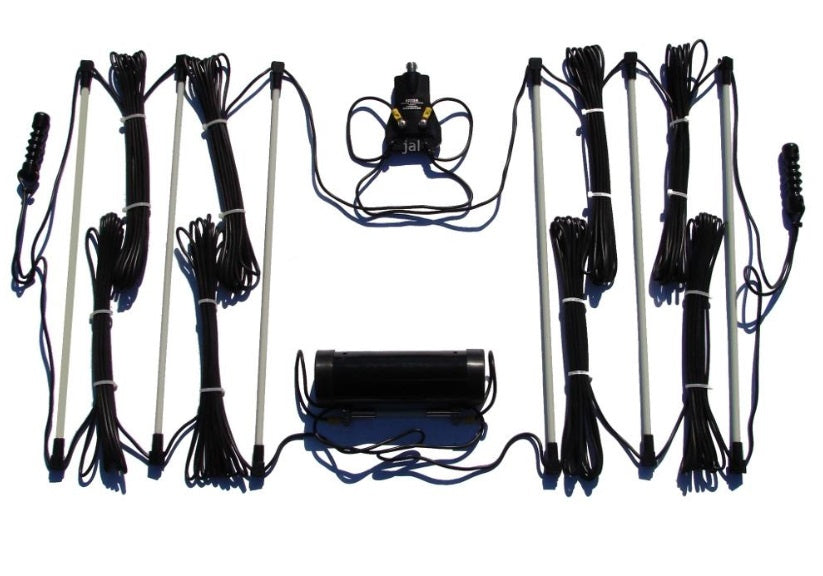

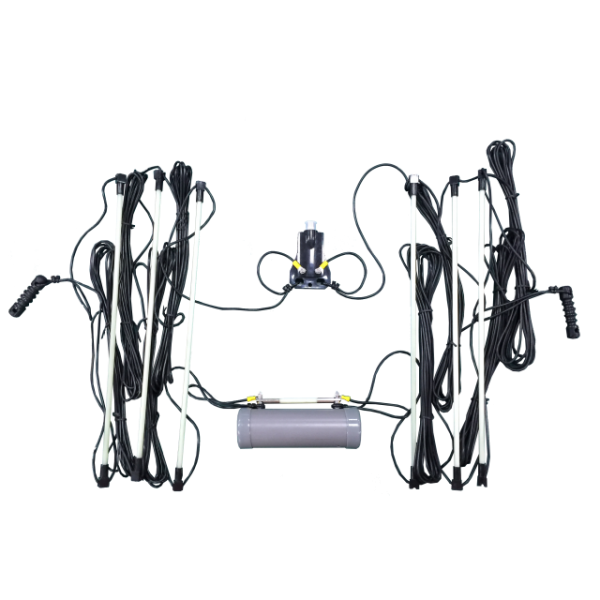

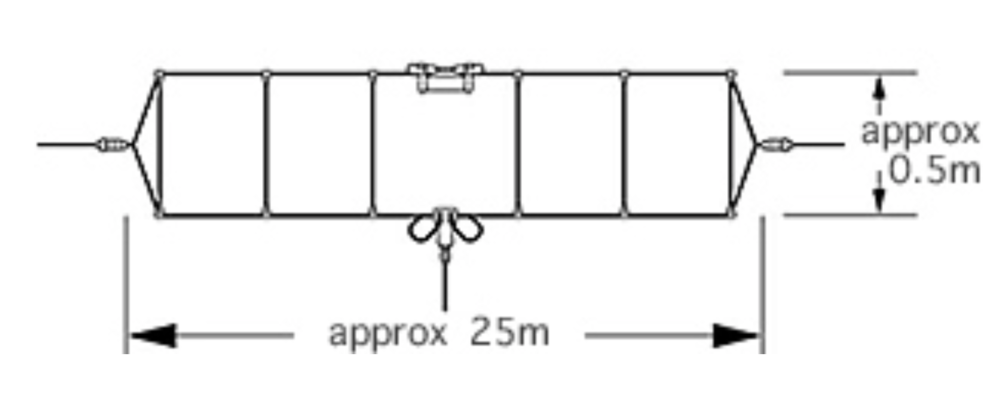

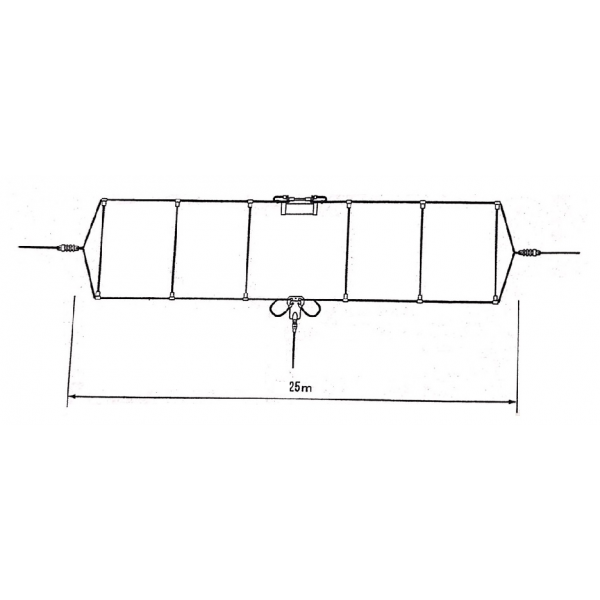

WD-330 Broadband HF Dipole , It Is Designed For Commercial Operation From 2 To 28.6MHz. The Antenna Comes Fully Assembled And Pretuned So No Measuring Or Cutting Is Required. The Antenna Is Constructed From High Quality PVC Covered Stranded Copper Wire, Complete With Fibreglass Spreaders, Matching Network And Balun

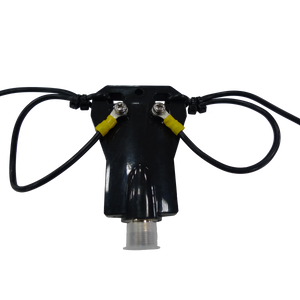

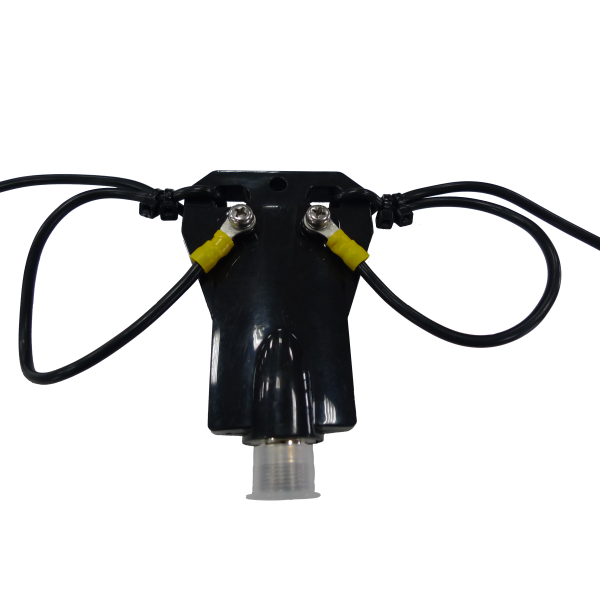

The Balun Provides For Single 50 Ohm Feedline Operation On All Bands. Proximity Of Ground And Nearby Structures May Affect The Performance Of The Antenna, So Rearrangement Of The Antenna May Be Required To Achieve A Good VSWR.
- Frequency 2-30MHz.
- Radiator Length: 10m.
- Type: Terminated Folded Dipole.
- Radiation: Directional.
- Feedline: 50 Ohm Coax.
- Connector: SO-239.SWR: Av <2:1 To <3:1.
- No Transmatch Required.
- Power: 150W (PEP).
- Spreaders: 46cm (18in).
- Weight 2.1kg
