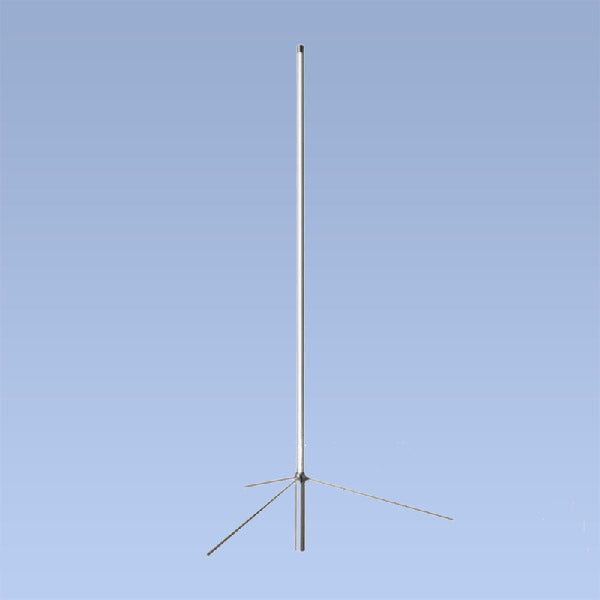

DIAMOND BC 200 BASE STATION UHF ANTENNA 1.7 metres LENGTH
DIAMOND BC 200 BASE STATION UHF ANTENNA 1.7 metres LENGTH
DIAMOND BC 200 BASE STATION UHF ANTENNA 1.7 metres LENGTH
  • Load image into Gallery viewer, DIAMOND BC 200 BASE STATION UHF ANTENNA 1.7 metres LENGTH
  • Load image into Gallery viewer, DIAMOND BC 200 BASE STATION UHF ANTENNA 1.7 metres LENGTH
  • Load image into Gallery viewer, DIAMOND BC 200 BASE STATION UHF ANTENNA 1.7 metres LENGTH

DIAMOND BC 200 BASE STATION UHF ANTENNA 1.7 metres LENGTH
Rs. 12,999.00
Rs. 12,999.00
Rs. 31,250.00
Sold out
Shipping calculated at checkout.


BC200 Series Base Station Antenna UHF

BC200 Series Base Station Antenna
High gain UHF base station antennas.


Special Features:

• Fiberglass radomes
• Overlapping outer shells for added strength
• Strong waterproof joint couplings
• Stainless steel hardware
• Wide band performance
• Factory adjusted – no tuning required
• Highest gain
• High wind rating
• DC grounded


BC200 Base Antenna
Specifications:
Band: 430-490 MHz
Element Phasing: 3-5/8l
Gain (dB): 6.5
Watts: 200
Connector: UHF
Weight: 3 lbs.
Length: 5.6'
Max Wind Resistance: 130 MPH

BC200-460 Base Antenna
Specifications:
Band: 450-460 MHz
Element Phasing: 3-5/8l
Gain (dB): 6.5
Watts: 200
Connector: UHF
Weight: 3 lbs.
Length: 5.6'
Max Wind Resistance: 130 MPH

BC200-470 Base Antenna
Specifications:
Band: 460-470 MHz
Element Phasing: 3-5/8l
Gain (dB): 6.5
Watts: 200
Connector: UHF
Weight: 3 lbs.
Length: 5.6'
Max Wind Resistance: 130 MPH


BC200

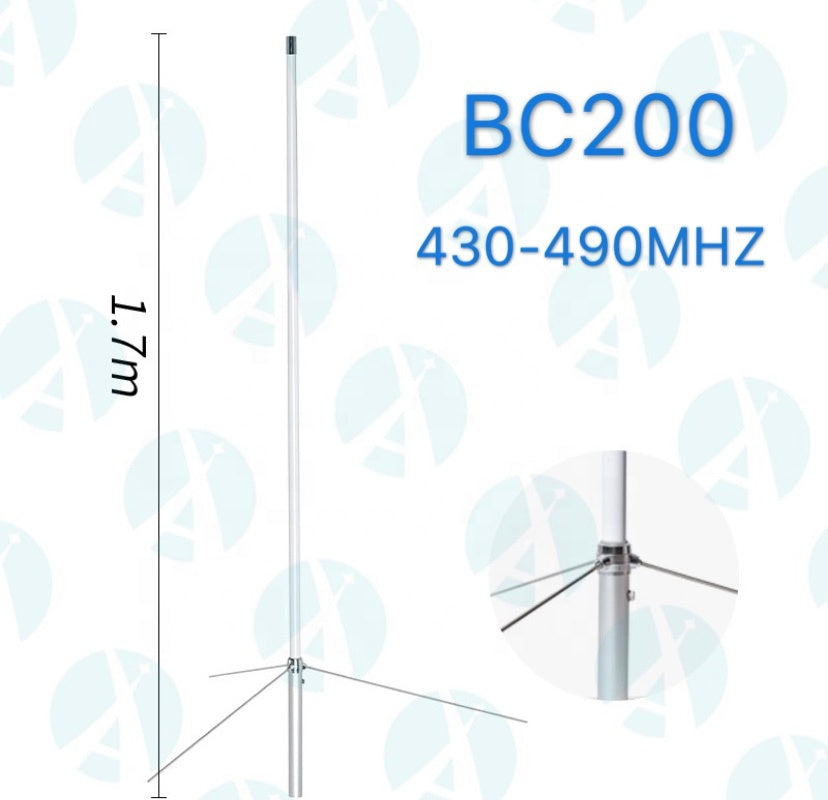

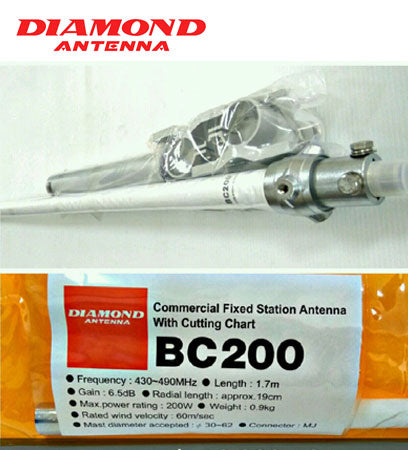

BC200: 430 to 490MHz with Cutting Chart

Length:1.7m / Weight:0.9kg
Gain:6.5dB / Max.power rating:200W / Impedance:50ohms
VSWR:Less than 1.5:1 / Rated wind velocity:60m/sec. / Mast diameter accepted:30-62φ / Connector:MJ / Type:omnidirectional 3×5/8λ,FRP outershell
