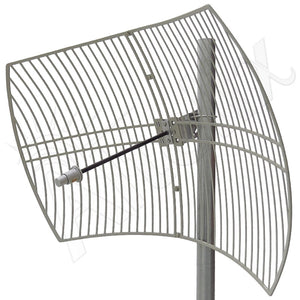

NPC 5.8 Ghz 30 DBI PARABOLIC GRID ANTENNA

Regular price
Rs. 8,950.00
Sale price
Rs. 8,950.00
Regular price
Rs. 10,000.00
Sold out
Unit price
per
Shipping calculated at checkout.

Features

  • Full Band Coverage (4900-5850 MHz)
  • High Gain & Low Cost
  • Vertical or Horizontal Polarization
  • Excellent Front-to-Back Ratio
  • Low Wind Loading
  • 60 Degree Tilt & Swivel Mounting Kit
  • All Weather Outdoor Operation



Frequency Range

4900-5850 MHz

Bandwidth

950 MHz

Gain

29 dBi @ 4.9 GHz / 30 dBi @ 5.8 GHz

Polarization

Vertical or Horizontal

Vertical Beamwidth

4 Degrees

Horizontal Beamwidth

6 Degrees

F/B Ratio

≥25dB

VSWR

<1.8:1

Impedance

50 Ohm

Maximum Power

100 Watts

Connector

Integral N Female

Dimensions

35.4 x 23.6 Inches (900 x 600 mm)

Mast Diameter

1.2 - 1.9 Inches (30-50 mm)

Weight

5.5 lbs. (2.5 kg)

Temperature Range

-40° - 140°F (-40° - 60°C)

Lightning Protection

Internal DC Ground

Max. Wind Velocity

130 mph (210 km/h)

Wind Loading Data

Wind Speed (MPH)

Loading

100

80.5 lbs

130

125.5 lbs

 Applications

  • Rapid Deployment Communications
  • 5 GHz- 5.8 GHz 802.11a/n
  • WiFi and WLAN Systems
  • 4.9 GHz Public Safety Band
  • 5 GHz Wireless Video Camera Systems
  • Long Range Wireless Bridge
  • Industrial FHSS, DSS
  • PTP Point-to-Point
  • PMP Point-to-Multipoint
  • Ubiquiti Bullet, MikroTik Groove
